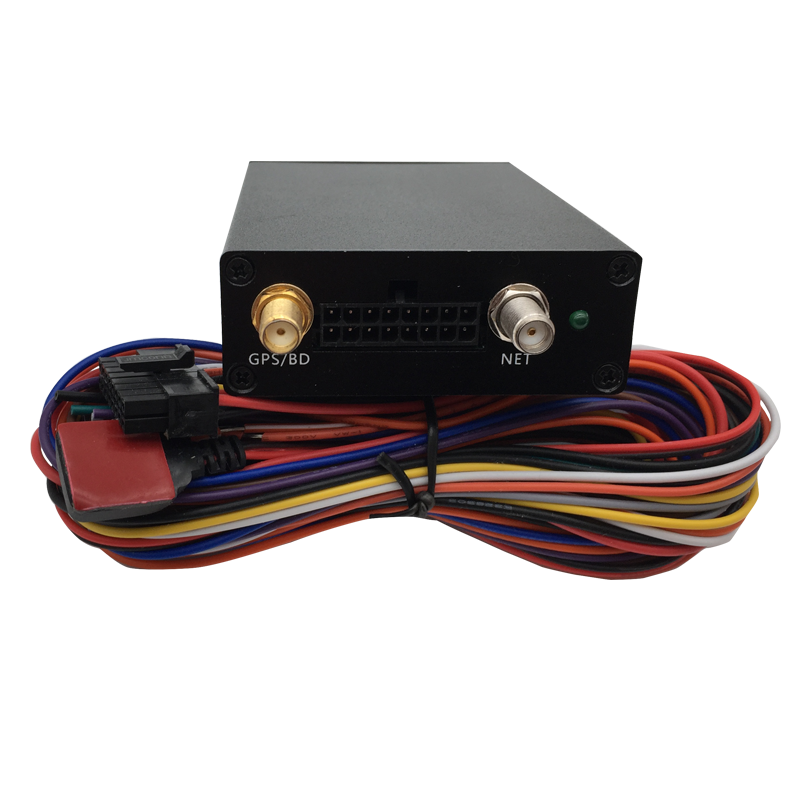

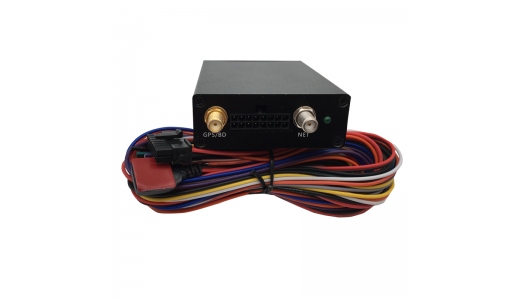

Vehilce GPS Tracking&fuel monitor(MT16-4G)

For Vehilce/Car/Taxi/Truck/Fleet managment ●Wide input voltage range: 9-50VDC ●GSM quad band,SMS/GPRS(TCP/IP) ●GPS chipset with high sensitivity ●Intelligent activation of GPS positioning ●High integrated, mini size ,easy to install ●Built-in high sensitive GPS&GSM

1.Main functions:

Wide input voltage range:6-50VDC
Troubleshooting automaticly processing
Support  vehicle original alarm

Intelligent activation of GPS positioning
High integrated, mini size ,easy to install
Built-in high sensitive GPS&GSM antennas.
Built-in flash:4M
Built-in ON/OFF power switch
Built-in vibration sensor,realize arm&disarmed
Built-in battery
Support Acc status detect

Support engine cut with relay

Support RS232、RS485/Can
Fuel sensor/Camera

Support external power supply cut alarm
Get location via google map link
Track by GPRS interval report

Suport                                           4G network
Voltage 6-50V DC
Current 22mA ( 12vDC )  , 2mA ( 24vDC )
GPS fixed time Cold start 30sec(open sky)
Warm start 29sec(open sky)
Hot start 5sec (open sky)
GPS precision 10m (2D RM)
Dimension 85 (L )×63 (W)×25(H)mm
Weight 90g
