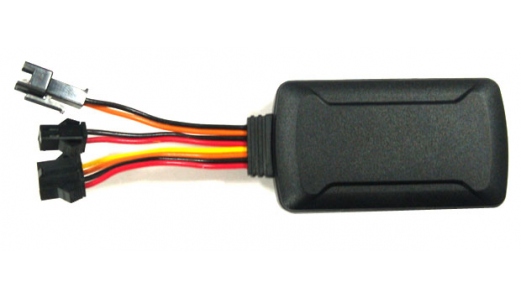

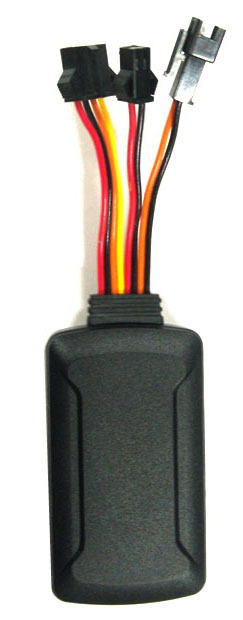

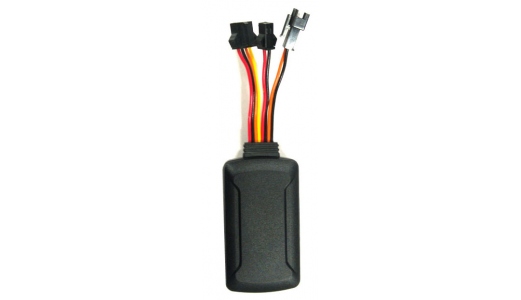

Vehicle Tracker,support Acc detection(FK60)

FK60 is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS chipset, MT08 has good sensitivity and stable performance. It can get accurate GPS fix even in remote places.


1.Main functions:

For Vehilce/Car/Taxi/Truck/Fleet managment/Motorcycle

GSM 850/900/1800/1900 Quad bad

High sensitive GPS chip,

High integration density of waterproof design

Built-in high sensitive GPS antenna, extra strong receptivity

The only one global vehicle device built in double antenna (GSM GPS)

Built-in ON/OFF power, wide voltage input range

Built-in vibration sensor, perform vehicle intelligent robbery protection

ACC detection, to upload status of vehicle operation

Be able to external connect cutoff relay to perform gas and electricity telecontrol

3 special numbers for SOS alarm and burglar alarm

Be able to external connect SOS alarm button for emergency call

Be able to external connect microphone to perform voice monitor

Built-in backup battery to perform alarm when wire is cut illegally

Compatible with external connection of device serial port communication

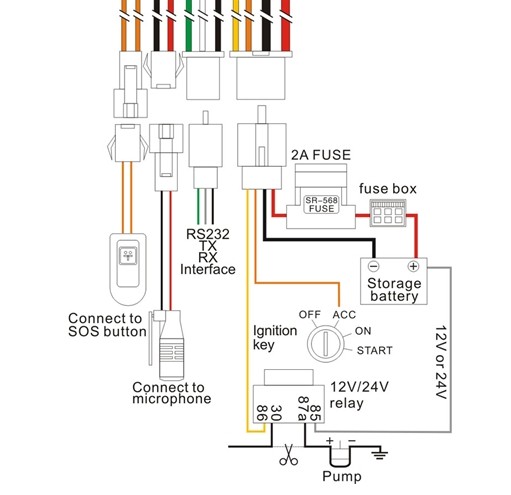

2.Installation:

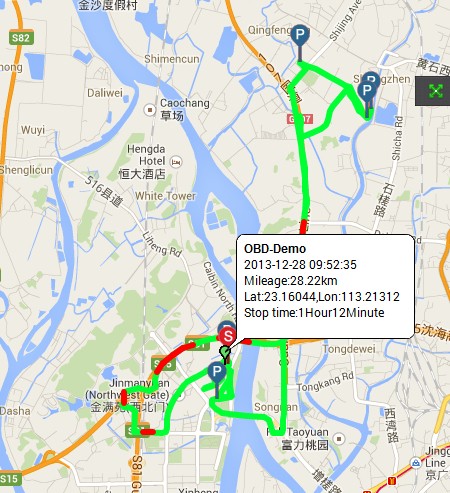

3.Online Tracking:


GSM 850/900/1800/1900MHz
GPRS Class 12, TCP/IP
Voltage 9-50V DC
Current 22mA ( 12vDC ) , 2mA ( 24vDC )
GPS fixed time Cold start 30sec(open sky)
Warm start 29sec(open sky)
Hot start 5sec (open sky)
GPS precision 10m (2D RM)
Dimension 90.0(L)x45.0(W) x13.5(H)m
Weight 70g
