●Wide input voltage range: 9-100VDC
●GSM quad band,SMS/GPRS(TCP/IP)
●GPS chipset with high sensitivity
●Intelligent activation of GPS positioning

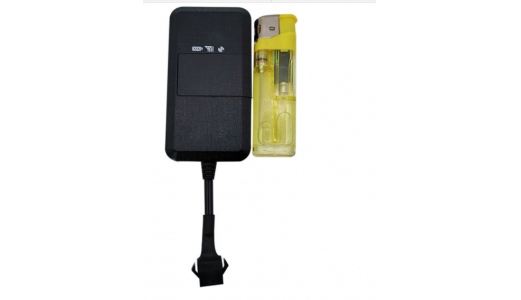

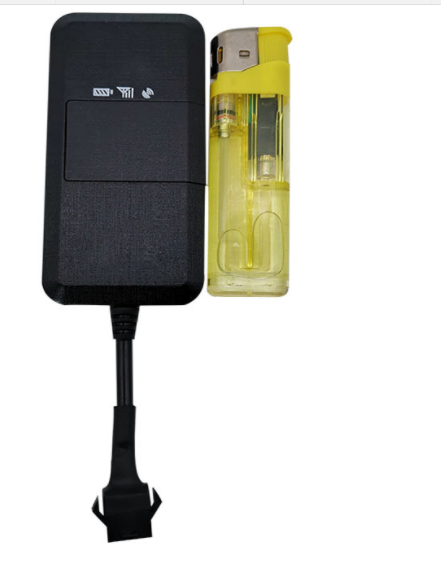

●High integrated, mini size ,easy to install
●Built-in high sensitive GPS&GSM antennas.
●Built-in ON/OFF power switch
●Built-in vibration sensor,realize arm&disarmed
●Built-in battery
●Support Acc status detect
●Support engine cut with relay
●Support external power supply cut alarm
●Get location via google map link
●Track by platform/smartphone app/wechat
| GSM |
850/900/1800/1900MHz |
| GPRS |
Class 12, TCP/IP |
| Voltage |
9-100V DC |
| Current |
22mA ( 12vDC ) , 2mA ( 24vDC ) |
| GPS fixed time |
Cold start 30sec(open sky) |
| Warm start |
29sec(open sky) |
| Hot start |
5sec (open sky) |
| GPS precision |
10m (2D RM) |
| Dimension |
90.0(L)x45.0(W) x13.5(H)mm |
| Weight |
80g |
